“VEDAFEU C © cords” fire protection systems consist of non-combustible, rot-resistant mineral fibers embedded in a fiberglass mesh. This fire protection cord (formerly known as a firewall granule) is resistant to water, moisture, harsh chemicals, and microorganisms. “VEDAFEU C ©” fire protection systems have undergone various classification tests for horizontal and vertical joints. Tested without sealant and with a 20% movement allowance, VEDAFEU C ©, available in various diameters from 12 mm to 180 mm, are classified as EI 240 (fire-resistant and thermal insulation for 240 minutes without failure), for all joint openings from 10 to 200 mm.
Applications
For fire protection of all types of horizontal and vertical joints: floor, wall, and ceiling joints; joints between prefabricated facades; joints between nosings and facades.
For fire-rated walls, ducts and conduits, service ducts, and neoprene supports.

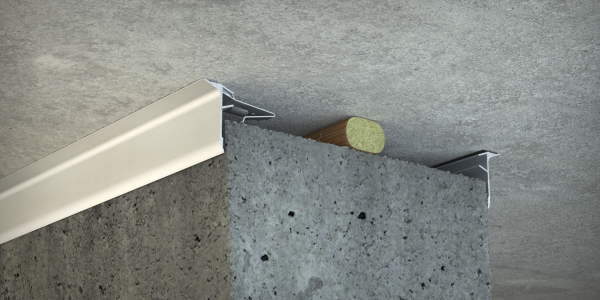

For sealing masonry joints: fire protection between the floor and the curtain wall (see Application Examples).
The fire barrier can be used in all types of buildings: hospitals, industrial and office buildings, residences, hotels, shopping centers, parking garages, schools, high schools, colleges, train stations, airports, stadiums, etc.
For the installation of the fire-resistant cable, refer to installation instructions No. 1 and No. 2, which have been validated by the official PV classification.
Finishes and Special Parts
VEDAFEU C © fire-stop cords are specifically marked for easy identification. This unique marking ensures that the installed barrier cord is the one that was specified. Sealing – Protection: Expansion joints in floors, walls, and ceilings may require additional protection. A watertight seal will be achieved, if necessary, by filling the top of the joint with an elastomeric sealant or using a waterproofing membrane. A joint cover, a flexible profile, or a mechanical seal can also ensure the expansion joint is closed.
Composition
The “VEDAFEU C © CORDS” fire protection system consists of non-combustible, rot-resistant mineral fibers embedded in a fiberglass mesh. Depending on the diameter, a VEDAFEU C fire protection cable has a specific density that allows it to be flexible and easy to compress.
| REF | OPENING (mm) | MOVEMENTS (mm) | VISIBLE WIDTH (mm) | TOTAL WIDTH (mm) | HEIGHT (mm) | CARGO |
|---|---|---|---|---|---|---|
| Vedafeu C12 | 10 | 20% / – 80% | 10 | 12 | 12 | – |
| Vedafeu C20 | 12 | 20% / – 80% | 12 | 20 | 20 | – |
| Vedafeu C30 | 20 | 20% / – 80% | 20 | 30 | 30 | – |
| Vedafeu C40 | 25 | 20% / – 80% | 25 | 40 | 40 | – |
| Vedafeu C50 | 30 | 20% / – 80% | 30 | 50 | 50 | – |
| Vedafeu C60 | 40 | 20% / – 80% | 40 | 60 | 60 | – |
| Vedafeu C80 | 50 | 20% / – 80% | 50 | 80 | 80 | – |
| Vedafeu C90 | 60 | 20% / – 80% | 60 | 90 | 90 | – |
| Vedafeu C100 | 65 | 20% / – 80% | 65 | 100 | 100 | – |
| Vedafeu C120 | 80 | 20% / – 80% | 80 | 120 | 120 | – |
| Vedafeu C150 | 100 | 20% / – 80% | 100 | 150 | 150 | – |
| Vedafeu C170 | 110 | 20% / – 80% | 110 | 170 | 170 | – |
| Vedafeu C180 | 120 | 20% / – 80% | 120 | 180 | 180 | – |
| Tipo de Aplicação |
|---|
