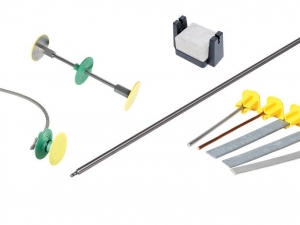

Connection Terminals
Description
“Secure” M10 bolts
for the fixed ground terminal Watertight seal
| Art. No | Description | PU | Weight |
|---|---|---|---|
| 100177 | galvanized, length 200 mm | 1 pc. | 0.15 kg/pc. |
| 100178 | galvanized, length 300 mm | 1 pc. | 0.21 kg/pc. |
| 100179 | V4A stainless steel, length 200 mm | 1 pc. | 0.15 kg/pc. |
| 100180 | V4A stainless steel, length 300 mm | 1 pc. | 0.21 kg/pc. |
Cross clamps for fixed M10/12 ground terminals
| Art. No | Description | PU | Weight |
|---|---|---|---|
| 100188 | Cross clamp for fixed ground terminal M10/12, galvanized M10 thread, round 8 + 10 mm flat up to 40 mm, wire length 70 mm |
Box of 10 pcs. | 3.90 kg per box |
| 100189 | Cross clamp for fixed ground terminal M10/12, V4A stainless steel M10 thread, round 8 + 10 mm flat up to 40 mm, wire length 70 mm |
Box of 10 pcs. | 3.20 kg per box |
Wall bushing, flexible
M10 flexible wall bushing
for height and lateral offset positioning of ground connections, fixed ground connection terminal made of V4A stainless steel, steel cable Ø 10 mm
| Art. No | Description | PU | Weight |
|---|---|---|---|
| 100660 | Wall bushing, flexible 600 mm 2 x fixed grounding terminals with connection clamps 1 x steel cable length 600 mm |
1 pc. | 0.75 kg per box |
| 100662 | Wall bushing, flexible 1200 mm 2 x fixed grounding terminal with connection clamp 1 x steel cable length 1200 mm |
1 pc. | 0.95 kg per box |
Wall bushing, flexible “Safe”
Flexible bushing, pressure-tight for M10 wall
for offset positioning in height and laterally of ground connections, sealing against pressurized water using RONDO EFP
| Item No. | Description | PU | Weight |
|---|---|---|---|
| 100670 | Wall bushing, flexible 600 mm “Seguro” 2 x fixed ground connection terminal with connection clamp and RONDO EFP 1 x steel cable length 600 mm |
1 pc. | 0.85 kg per box |
| 100672 | Wall-mounted, flexible 1200 mm 2 x fixed grounding terminals with connection clamps and RONDO EFP 1 x steel cable, 1200 mm long |
1 pc. | 1.05 kg per box |
M12 fixed ground terminal
for connecting equipotential bonding conductors to the ring ground electrode, the reinforcement cage, and the lightning protection system
for offset positioning of ground connections in height and laterally, sealing against pressurized water using RONDO EFP
| Item No. | Description | PU | Weight |
|---|---|---|---|
| 100300 | M12 fixed ground terminal, V4A stainless steel with yellow protective cap M12 connection |
1 box of 10 pcs. |
2.00 kg per box |
| 100304 | M12 “Safe” Fixed Ground Terminal with yellow protective cap and water barrier M12 connection |
1 box of 10 pcs. |
2.40 kg per box |
| 100308 | 40 x 4 mm connection plate incl. M12 x 25 screw |
1 box of 10 pcs. |
2.00 kg per box |
| 100312 | M12 fixed ground terminal with connection plate and yellow protective cap M12 connection |
1 box of 10 pcs. |
4.00 kg per box |
| 100316 | M12 “Safe” fixed ground terminal with connection plate and yellow protective cap M12 connection |
1 box of 10 pcs. |
4.40 kg per box |
M12 “Solo” Shafts for Fixed Ground Terminal
| Art. No | Description | PU | Weight |
|---|---|---|---|
| 101170 | galvanized, length 200 mm | Box of 50 pcs. | 8.00 kg/box |
| 101172 | galvanized, length 300 mm | Box of 50 pcs. | 12.00 kg/box |
| 101174 | V4A stainless steel, length 200 mm | Box of 50 pcs. | 8.00 kg/box |
| 101176 | V4A stainless steel, length 300 mm | Box of 50 pcs. | 12.00 kg/box |
M12 “secure” bolts
for fixed ground terminal Watertight seal
| Item No | Description | PU | Weight |
|---|---|---|---|
| 101180 | galvanized, length 200 mm | 1 pc. | 0.19 kg/pc. |
| 101182 | Galvanized, length 300 mm | 1 pc. | 0.27 kg/pc. |
| 101184 | V4A stainless steel, length 200 mm | 1 pc. | 0.19 kg/pc. |
| 101186 | V4A stainless steel, length 300 mm | 1 pc. | 0.27 kg/pc. |
Cross clamps for M12 fixed ground terminals
| Item No. | Description | PU | Weight |
|---|---|---|---|
| 100460 | Cross clamp for M12 fixed ground terminal, galvanized M12 wire, wire length 70 mm Clamping range: round 8 + 10 mm, flat up to 40 mm |
Box of 10 pcs. | 3.90 kg per box |
| 100462 | Cross clamp for M12 fixed ground terminal, V4A stainless steel M12 wire, wire length 70 mm Clamping range: round 8 + 10 mm, flat up to 40 mm |
Box of 10 pcs. | 3.90 kg per box |
| 100464 | Cross clamp for M12 fixed ground terminal, V4A stainless steel M12 wire, wire length 200 mm Clamping range: round 8 + 10 mm, flat up to 40 mm |
Box of 10 pcs. | 4.25 kg per box |
M16 Fixed Earth Terminal and Accessories
for connecting equipotential bonding conductors to the foundation earth electrode, the reinforcement, and the lightning protection system
| Item No. | Description | PU | Weight |
|---|---|---|---|
| 100455 | M16 VA4 fixed earth terminal in stainless steel without shaft with yellow protective cap M16 connection |
Box of 10 pcs. | 2.00 kg per box |
| 100461 | M16 VA4 fixed ground terminal in stainless steel with flexible connection cable Connection conductor/SN 95 mm² Conductor length 400 mm |
1 pc. | 0.75 kg per pc. |
| 100458 | Cross clamp for M16 VA4 fixed ground terminal in stainless steel M16 wire, round 8 + 10 mm flat up to 40 mm, wire length 30 mm |
Box of 10 pcs. | 3.20 kg per box |
Accessories for fixed ground terminal
| Art. No | Description | PU | Weight |
|---|---|---|---|
| 100198 | Plastic foam for fixed ground terminal single-sided adhesive Ø 76 mm, thickness 20 mm |
Bag of 10 pcs. |
0.10 kg |
| 100196 | Spider clamp for fixed ground terminal steel/polished |
1 pc. | 0.13 kg |
| 100458 | Cross clamp for fixed ground terminal M16, VA4 in stainless steel M16 wire, round 8 + 10 mm flat up to 40 mm, wire length 30 mm |
Box of 10 pcs. | 3.20 kg per box |
MultiCap
PVC protective cap
for round and flat conductors
| Item No. | Description | PU | Weight |
|---|---|---|---|
| 100500 | MultiCap, color: yellow Application area: round conductor: 8–10 mm flat conductor: 30 x 3.5 mm |
Bag of 100 pcs. | 5.10 kg per bag |
Terminals
Conductor rods, beveled
| Item No. | Description | Quantity | PU | Weight |
|---|---|---|---|---|
| 100555 | V4A round conductor Ø 10 mm | 1.50 m | Pack of 10 pcs. | 9.40 kg/pack |
| 100560 | V4A round conductor Ø 10 mm | 2.00 m | Pack of 10 pcs. | 12.40 kg/pack |
| 100565 | V4A round conductor Ø 10 mm | 2.50 m | Bundle of 10 pcs. | 15.60 kg/bundle |
| 100570 | V4A round conductor Ø 10 mm | 3.00 m | Bundle of 10 pcs. | 18.80 kg/package |
RONDO
Sealing collars for lightning protection cables and grounding straps
RONDO sealing collars form pressure-tight seals for lightning protection cables and grounding straps passing through concrete walls, slabs, and shafts.
| Item No. | Description | PU | Secondary packaging | Weight |
|---|---|---|---|---|
| 090890 | RONDO RO 10 for the 8 + 10 mm lightning protection conductor |
1 pc. | Box of 100 pcs. | 0.13 kg |
| 090892 | RONDO RO flat for the grounding bar 30×3.5 + 30×3.0 mm |
1 pc. | 0.17 kg | |
| 090988 | RONDO EFP for hexagonal fixed ground terminal |
1 pc. | Bag of 25 pcs. |
0.04 kg |
RONDO
Sealing collars for lightning protection wire and grounding strap
RONDO sealing collars form pressure-tight seals for lightning protection conductors and grounding straps passing through concrete walls, slabs, and shafts.
| Item No | Description | PU | Weight |
|---|---|---|---|
| 100165 | Profiled ground rod, 1.5 m long, galvanized, cross-section 50 x 50 mm with welded cross clamp | 1 pc. | 4.30 kg per pc. |
| 100170 | Galvanized ground electrode spacer for foundations, for round conductors Ø 8–10 mm, ground strap 30 x 3.5 mm, length 280 mm, installation spacing 1–1.5 m | Box of 100 pcs. | 10.30 kg per box |
| 100176 | Expansion strap with polystyrene body, V2A Routing of the ground electrode in foundations through expansion joints |
1 pc. | 0.68 kg per pc. |
Anti-corrosion tapes
for wrapping ground and underground connections
| Item No. | Description | Size | PU | Weight |
|---|---|---|---|---|
| 100190 | Anti-corrosion tapes Roll length 10 m, DVGW-certified | 1.5 x 50 mm | Box of 24 rolls | 1.00 kg/roll |
| 100193 | Anti-corrosion tape, 10 m roll length, DVGW-certified | 1.5 x 100 mm | Box of 12 rolls | 2.10 kg/roll |
Anti-corrosion tapes
for wrapping above-ground and underground connections
| Item No | Description | PU | Weight |
|---|---|---|---|
| 100205 | Ground rod for installing grounding systems Galvanized Length: 1500 mm Ø 20 mm |
1 pc. | 3.60 kg per pc. |
| 100210 | Ground rod for the installation of grounding systems V4A stainless steel Length: 1500 mm Ø 20 mm |
1 pc. | 3.60 kg per pc. |
| 100215 | Impact tip for driving the first ground rod bright steel |
1 pc. | 0.04 kg per pc. |
| 100216 | Drive-in aid for ground electrode bright steel |
1 pc. | 0.55 kg per pc. |
| 100218 | Connection clamp for ground rod Galvanized round 8 + 10 mm flat up to 40 mm |
1 pc. | 0.38 kg per pc. |
| 100217 | Connection clamp for ground rod V4A stainless steel round 8 + 10 mm flat up to 40 mm |
1 pc. | 0.30 kg per pc. |
Anti-corrosion tapes
for wrapping ground and underground connections
| Item No | Description | PU | Weight |
|---|---|---|---|
| 100205 | Ground rod for installing grounding systems Galvanized Length: 1500 mm Ø 20 mm |
1 pc. | 3.60 kg per pc. |
| 100210 | Ground rod for grounding system installation V4A stainless steel Length: 1500 mm Ø 20 mm |
1 pc. | 3.60 kg per pc. |
| 100215 | Impact tip for driving the first ground rod bright steel |
1 pc. | 0.04 kg per pc. |
| 100216 | Drive-in aid for ground electrode bright steel |
1 pc. | 0.55 kg per pc. |
| 100218 | Connection clamp for ground rod Galvanized round 8 + 10 mm flat up to 40 mm |
1 pc. | 0.38 kg per pc. |
| 100217 | Connection clamp for ground rod V4A stainless steel round 8 + 10 mm flat up to 40 mm |
1 pc. | 0.30 kg per pc. |
Anti-corrosion tapes
for wrapping ground and underground connections
| Item No. | Description | PU | Secondary packaging | Weight |
|---|---|---|---|---|
| 100470 | multiClip roof conductor bracket for flat roofs 8 mm mounting bracket made of lightning-resistant plastic stone made of concrete |
10 pcs. | 1,000 pcs. per pallet | 1.00 kg per pc. |
