Firebreak grill

• Fire resistance: 60, 120, and 240 minutes
• Airflow up to 80%
• Maximum dimensions:
  • – Single round grille – Ø 400 [mm];
  • – Single rectangular grille – 600×600 [mm]
  • Non-standard sizes

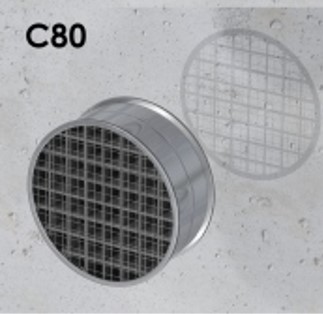

COR CFR GRILLE ventilation grilles are made of a material that expands when exposed to temperatures above 140 °C. Intumescent inserts seal the ventilation openings during a fire, preventing the spread of flames and smoke

APPLICATION:

COR CFR grilles are installed in ventilation openings in walls and floors. The material’s expansion during a fire completely fills the opening, preventing flames and smoke from entering adjacent rooms.

Solid walls:

The wall must be at least 150 mm thick and have a concrete structure, cellular concrete structure, or masonry structure, with a minimum density of 600 kg/m³

Rigid floors:

The floor must be at least 150 mm thick and have a concrete structure, cellular concrete structure, or masonry structure, with a minimum density of 1700 kg/m³
