CJP screw cover joint

SCREW COVER JOINT

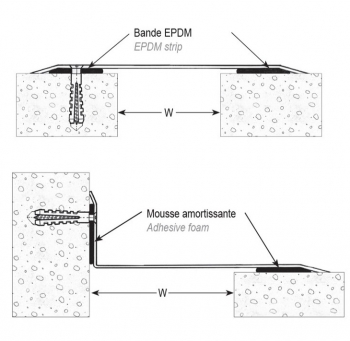

The CJP range of folded joint covers is designed to protect and cover joints in façades, walls, ceilings and floors. Economical, easy and quick to install, pre-drilled or plain, they are used in new constructions and in refurbishment projects, in expansion joints up to 500-mm wide, using flat or angle sections. Generally installed by mechanical means, they are drilled and countersunk in one side every 400 mm, i.e. 7 holes per 3-m bar. Flat joint covers have a W reference, whilst angle joint covers have an EW reference; this is followed by a number that indicates the visible width in millimetres of the joint cover.

USE

They are used in floors, walls and ceilings, indoors or outdoors, in all types of constructions, such as shopping centres, airports, stations, office buildings, hospital, residential buildings, department stores, schools, supermarkets and hypermarkets, public council buildings, leisure centres, factories… They are fully compatible with our Vedafeu C fire barrier cords and beads.

FINISHES AND SPECIAL PARTS

They are available in plain aluminium, anodised aluminium, powder-coated aluminium in any RAL colour, galvanised steel, 304 / 316 stainless steel and brass. It is possible to drill both sides, with round holes in one side and elongated holes in the other side in order to guide and keep as it moves with the expansion and contraction, or with elongated holes in both sides. A special foam with one adhesive side can be supplied as an option to ensure water and sound proofing.

REF	GAP (mm)	MOVEMENTS (mm)	VISIBLE WIDTH (mm)	TOTAL WIDTH (mm)	HEIGHT (mm)	LOADS
COR-CJP 125A	0 – 75	–	125	125	1 – 3
COR-CJP 175A	75 – 100	–	175	175	1- 3
COR-CJP 220	0 – 75	–	200	200	1 – 3
COR-CJP 225A	100 – 150	–	225	225	1 – 3
COR-CJP 250	75 – 100	–	250	250	1 – 3
COR-CJP 275A	150 – 200	–	275	275	1 – 3
COR-CJP 300	100 – 150	–	300	300	1 – 3
COR-CJP 325A	200 – 250	–	325	325	1 – 3
COR-CJP 350	150 – 200	–	350	350	1 – 3
COR-CJP 375A	250 – 300	–	375	375	1 – 3
COR-CJP 400	200 – 250	–	400	400	1 – 3
COR-CJP 425A	300 – 350	–	425	425	1 – 3
COR-CJP 450	250 – 300	–	450	450	1 – 3
COR-CJP 475A	350 – 400	–	475	475	1 – 3
COR-CJP 500	300 – 350	–	500	500	1 – 3
COR-CJP 525A	400 – 450	–	525	525	1 – 3
COR-CJP 550	350 – 400	–	550	550	1 – 3
COR-CJP 575A	450 – 500	–	575	575	1 – 3
COR-CJP 600	400 – 450	–	600	600	1 – 3
COR-CJP 650	450 – 500	–	650	650	1 – 3
